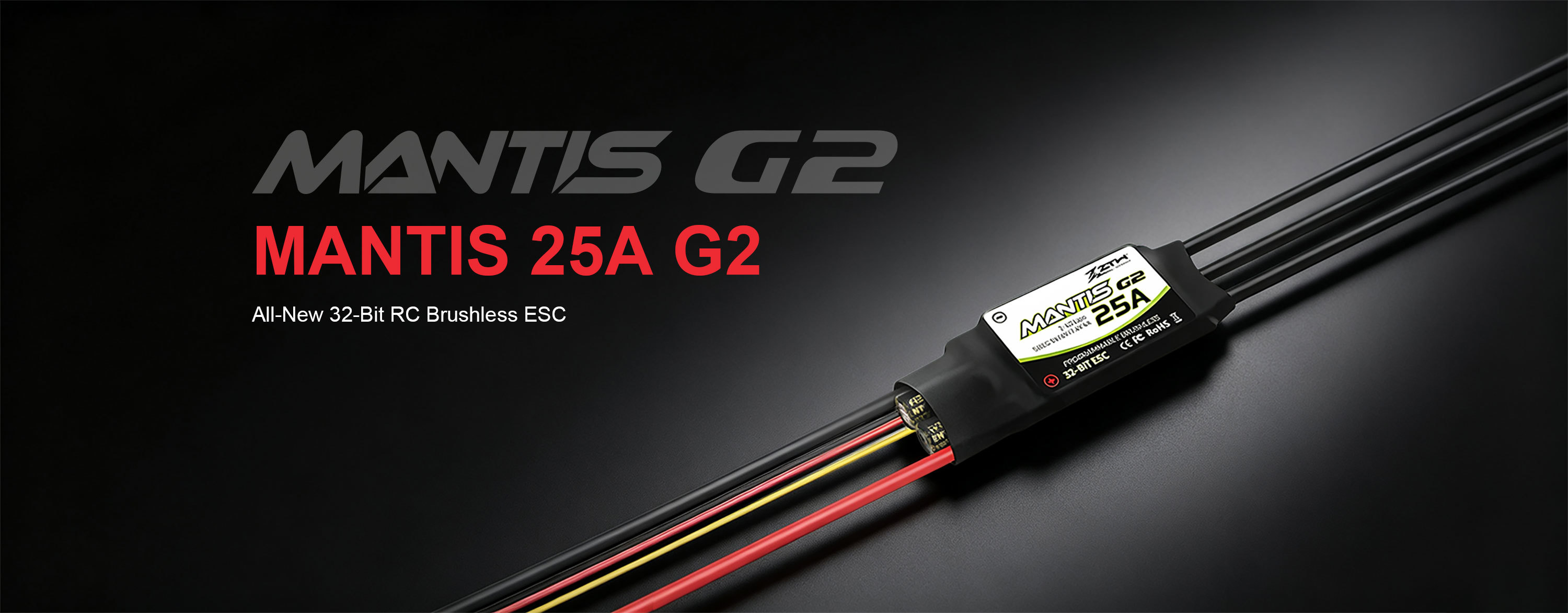

Mantis G2 Series: 32-Bit Brushless ESC

ZTW Mantis 25A SBEC G2 32-Bit ESC 2-4S with Adjustable BEC for RC Fixed Wing F3P EDF Jet Mini VTOL Aircraft

10mm Flat ESC for Sport & Scale Airplanes

The Mantis 25A features a slim 10mm flat profile (68×28×10mm, 36g) designed to tuck inside narrow fuselages of sport planes, warbirds, and 3D foamies where a standard ESC won't fit.

25A Continuous / 35A Burst on 2-4S

Delivers 25A sustained and 35A peak on 2-4S LiPo through 18-gauge wires, driving 28-35mm outrunners in sport aerobatic and scale warbird applications.

32-Bit Processor & Auto Timing

The 32-bit MCU with automatic motor timing identification ensures optimal efficiency and broad motor compatibility — no manual timing setup needed when swapping motors.

Synchronous Rectification

Synchronous rectification delivers faster throttle response, lower temperatures, and longer flight times by reducing switching losses.

5/6/7.4V Adjustable 4A BEC

The switching BEC is adjustable between 5V, 6V, and 7.4V at 4A, supporting both standard and HV digital servos without an external BEC.

Normal/Soft Acceleration & RVS Braking

Selectable normal or soft acceleration (soft recommended for EDF), plus motor direction switching with braking reverse for shortened landing rolls.

Triple Programming & Protections

Transmitter, LCD Program Card G2, or APP programming with six protection layers. Pre-soldered XT60 and 3.5mm gold bullets.

Technical Specifications
